How to Maximize Cutting Precision & Efficiency for Roll Die Cutting Machines

You've seen it happen. The roll die cutting line is running at speed — 180 cuts per minute, sheets flying through the machine. Then you pull a sample from the stack and notice it: the cut is off by half a millimeter. The print is drifting relative to the die. By the time you catch it, you've already run a thousand defective blanks.

Cutting precision and efficiency on a roll die cutting machine aren't just about the machine itself — they're about setup, materials, and maintenance. Feida Machinery's FD series automatic roll die cutter achieves cutting precision of ±0.20mm and runs at speeds up to 180 cuts per minute, with inline flexo printing capability for paper cups, bowls, and plates. This guide covers how to maximize both precision and efficiency on your roll die cutting line.

Start with the right material for the job

The material you run determines the cutting quality you can achieve.

Paper weight range — 120 to 600g/㎡

The FD series handles paper from 120 to 400g/㎡ on the standard model, and up to 600g/㎡ on the inline flexo printer version. Running material outside this range — too light or too heavy — compromises cut quality and accelerates blade wear. For paper cups and bowls, stick to the 200–400g/㎡ range for best results.

Material compatibility beyond paper

The machine cuts paper, cardboard, aluminum foil, and flexible packaging film. Each material behaves differently under the cutting die. Foil and film require sharper blades and lower friction; cardboard needs higher pressure. Match your die and blade selection to the material you're running.

Check material flatness and moisture

Warped or damp paper feeds unevenly, causing misregistration and inconsistent cuts. Store paper at consistent humidity and temperature. If you're running recycled board, expect more variation — and more frequent blade changes.

Set up for precision — registration and alignment

Precision starts at the setup stage. Get these parameters right, and the machine holds accuracy across the entire run.

Cutting precision — ±0.20mm

The FD series holds cutting precision to ±0.20mm. That's tight enough for most paper cup and packaging applications. If you're seeing drift beyond this tolerance, check the web guiding system first — it controls the lateral position of the material as it enters the cutting station.

Flexo registration — 1/8" gear pitch

The inline flexo printer uses a 1/8" (3.175mm) gear pitch, with printing repeat length of 10" to 22.5". Registration between the print and the die cut is critical. If the print drifts relative to the cut, check the gear mesh and the registration sensors. Dirty sensors are a common cause of drift.

Web guiding — keep it straight

The FD series features a web guiding system that maintains material alignment. If the web drifts sideways, the cut moves with it. Regularly inspect the web guide sensors and ensure the material is tracking straight through the machine. Uneven tension across the web width is a frequent cause of misalignment.

Maximize efficiency — speed and throughput

Efficiency on a roll die cutting machine isn't just about top speed — it's about sustained output with minimal waste.

Speed range — 100 to 180 cuts/min

The FD series runs at 100–180 cuts per minute. At the high end, that's 10,800 cuts per hour. But speed isn't useful if quality suffers. Find the speed that maintains ±0.20mm precision for your specific material. For heavier paper (400g/㎡+), you may need to run at the lower end of the range.

Production speed — up to 200 m/min

Feida's roll die cutting machine can reach production speeds of 200 m/min. That's the linear speed of the material through the machine. Higher linear speed means more sheets per hour, but it also means less time for the die to make a clean cut. Balance speed against material thickness and die condition.

Reduce waste with consistent setup

The machine's high production speed helps realize high-speed production and improve productivity. But waste reduction comes from consistent setup, not just speed. Run a test batch at the start of every shift. Check cut quality, registration, and edge condition before running full speed.

Maintenance that preserves precision

Precision fades when components wear. A regular maintenance schedule keeps the machine cutting accurately.

Blade condition — the #1 factor in cut quality

Dull blades tear paper instead of cutting it. Replace blades at the first sign of frayed edges or increased cutting force. For high-volume production, schedule blade changes based on meter count, not calendar days. The FD series cuts paper up to 600g/㎡ — heavier paper dulls blades faster.

Die alignment — check it weekly

The die must be perfectly aligned with the material path. Misalignment causes uneven cutting pressure — one side of the sheet cuts clean, the other doesn't. Use a dial indicator to check die runout weekly. Any visible wobble indicates bearing wear or die damage.

Air pressure and consumption

The FD series requires 0.6MPa air pressure with consumption of 0.25m³/min. Low air pressure affects cylinder actuation and clamping force. Check the air pressure gauge at the start of every shift. A clogged filter or a leak in the pneumatic system can drop pressure without triggering an alarm.

Questions operators ask about roll die cutting

Q: What materials can the roll die cutting machine cut?

A: The machine cuts paper (120–600g/㎡), cardboard, aluminum foil, and flexible packaging film. For the standard model, paper range is 120–400g/㎡; the inline flexo printer model extends to 600g/㎡.

Q: What is the cutting precision of the FD series?

A: Cutting precision is ±0.20mm. With proper setup and maintenance, the machine maintains this accuracy across the full production run.

Q: What is the typical lead time for a roll die cutting machine?

A: Standard lead time is 45–60 days. Demo machines are available for urgent projects.

How Feida Machinery supports precision and efficiency

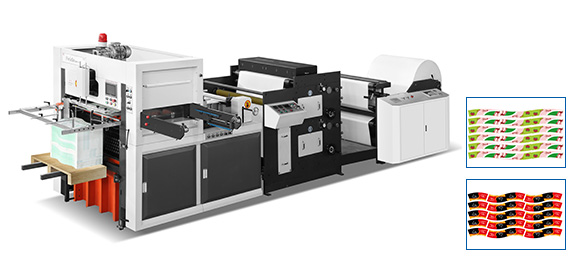

Feida Machinery's FD series automatic roll die cutting machine is based on international advanced technology, with high stability, high safety performance, and high precision. The inline flexo printer version adds 2–6 color printing capability, making it suitable for paper cups, paper bowls, and paper plates.

The machine features high speed die cutting up to 180 times/min with an advanced servo motor control system. All key components and controls are imported. The operation interface and control system are designed to be simple and intuitive, allowing operators to get started quickly.

Feida provides all-around considerate service from pre-sale to after-sale, with a team that can answer system, program, or component questions. For maintenance and support, the company offers timely solutions to keep your production running.

Before you start your next production run, check your material weight, blade condition, and air pressure. A few minutes of preventive checks saves hours of troubleshooting and thousands of rejected blanks.

Ready to maximize cutting precision and efficiency on your roll die cutting line? Contact Feida Machinery for product specifications or technical support. Share your material types, target output speed, and precision requirements — their team can recommend the right FD series configuration for your application.
