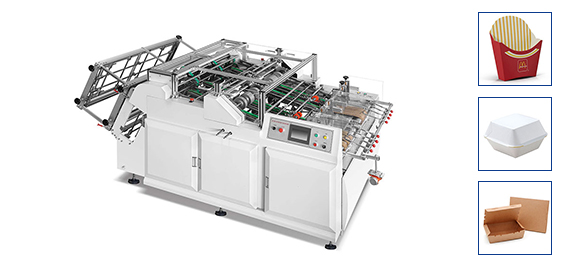

Carton Erecting Machine ZX-1600

Machine Description

The double-station carton erecting machine directly forms the paper boxes by stamping, saving time for the traditional opening boxes process before packing food. The boxes can be filled not only with solid food but also with liquid food, meeting the requirements for environmentally friendly, hygienic, well-sealed, and fast circulation.

The whole machine is fully servo-controlled, and the double stations can be used independently. The machine complies with the "CE" certification and also features accurate and stable transmission, high production efficiency, and small floor area. Various product boxes can be formed on the same machine by changing the mould.

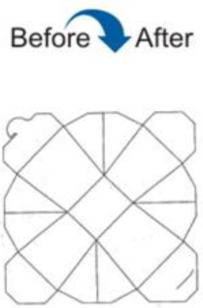

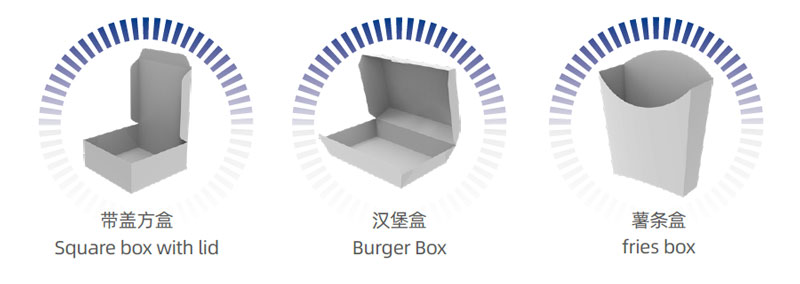

BASIC PAPER BOX SHAPE

TECHNICAL SPECIFICATION

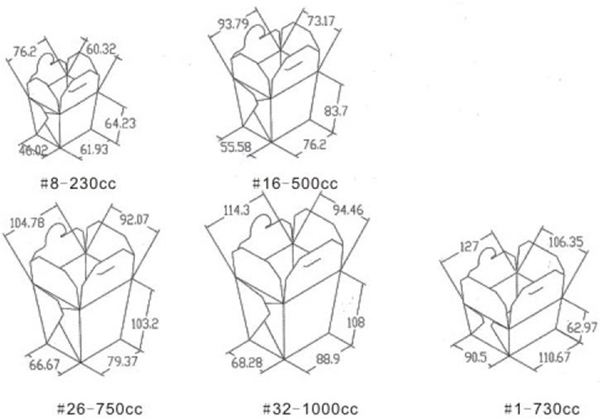

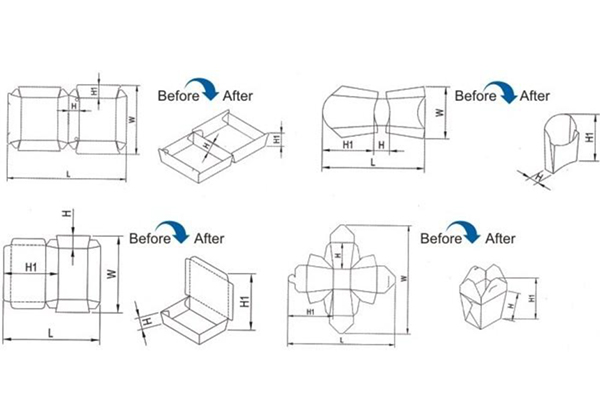

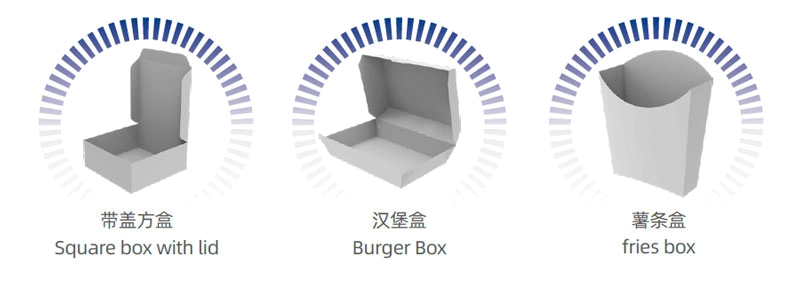

BOX TYPE

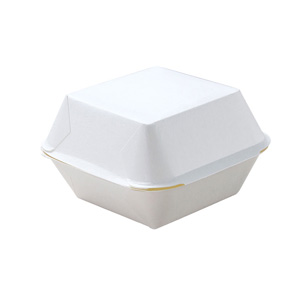

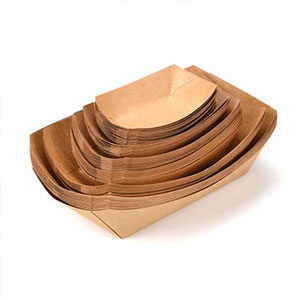

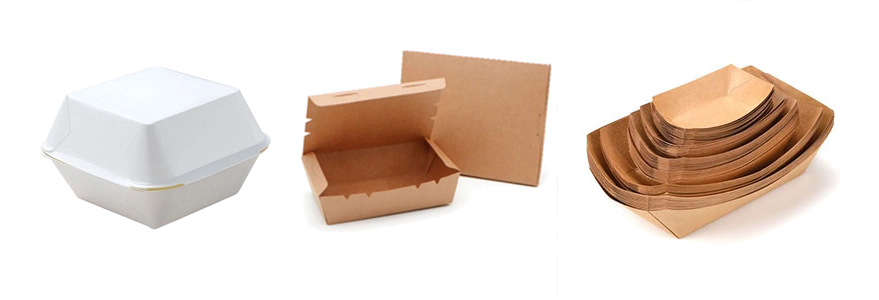

SAMPLE BOX

Machine Details

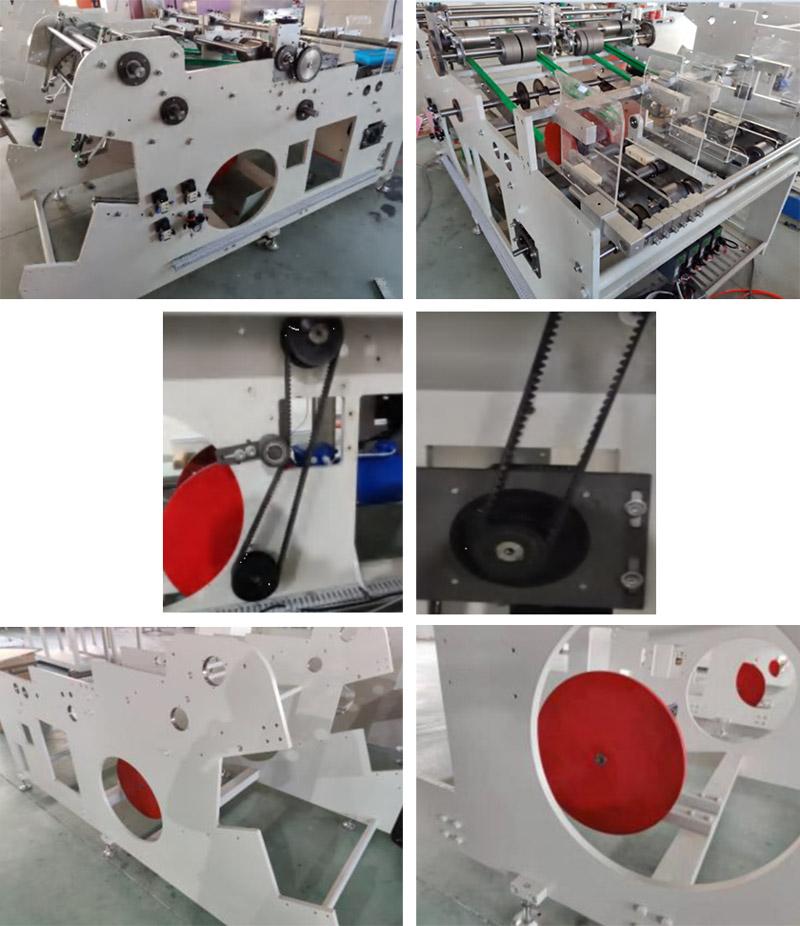

Thick Walls

Machine weight is exceed 2800kgs, machine runs stably at a high speed.

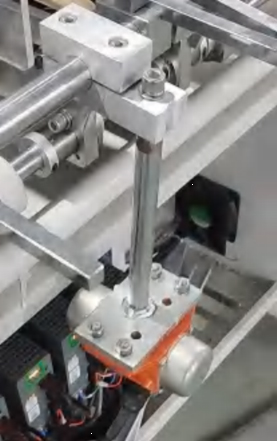

Cam Pushing System

The cam pusher design reduce the wearing a lot.

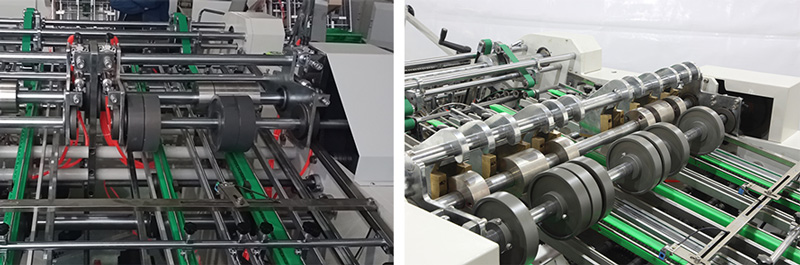

Belt Structure

The belt structure has features of low noise, easy maintenance, longer service life, and high precision

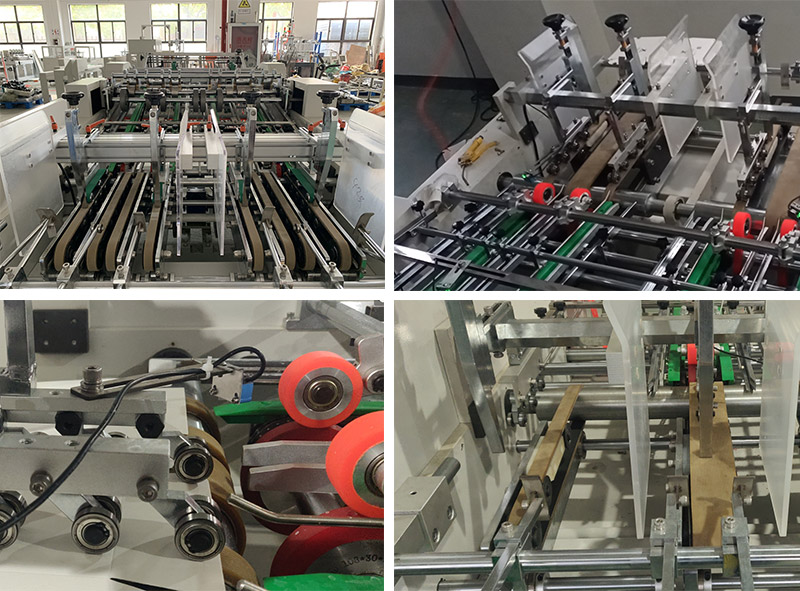

We are using the same structure as the folder glue machine; the paper will be delivered more smoothly. And hard aluminium material, much better, and uses an imported belt; the machine will stop if the machine doesn’t deliver paper or the machine is not in the correct way. We are also using a servo motor for feeding.

At the beginning of the paper feeding part, we install the vibrator; the quality of the output products will be increased when feeding precision is high, and it can make paper feed more smoothly.

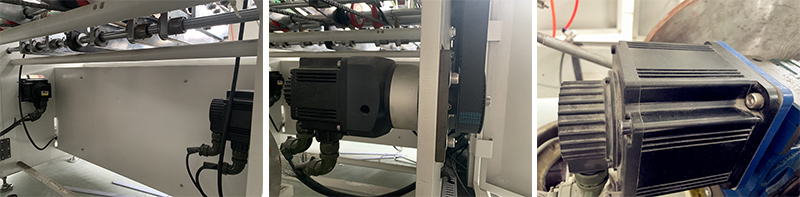

We are using a 4-servo system - two servo motors for paper feeding, one servo motor for paper sending, one servo motor for molding. The structure is much easier, and it has fewer damageable parts with lower maintenance cost; you could do most adjustments by Touch Screen Program PLC. If you only run the single lane, you could turn off the second lane; they are independent.

Wheel Glue System – they are independent.

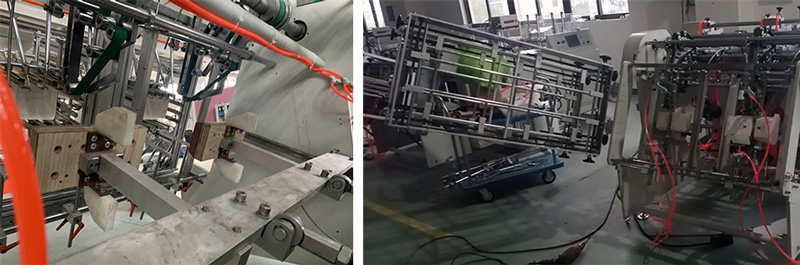

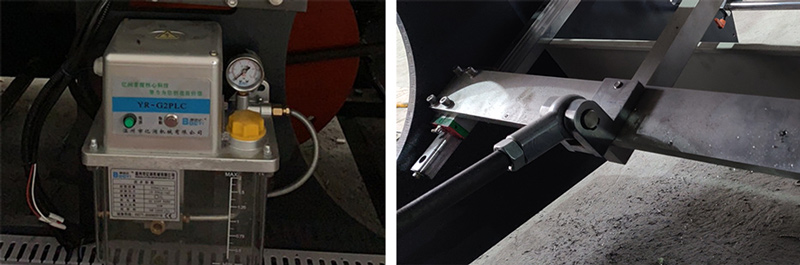

In the forming part, we have the lubrication system and use the two rails, which can make the forming more stable and have a longer service life.

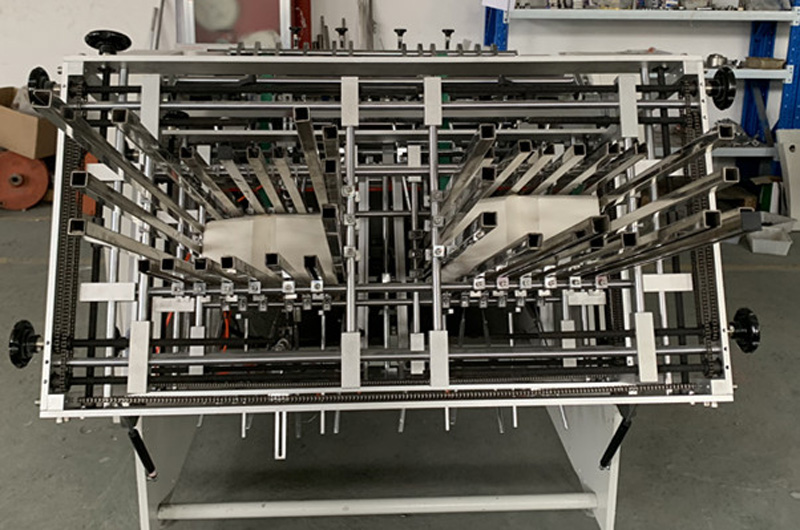

We improve this structure; you can make changes faster than others, and the collection unit could be opened when you change the molds.

Two collection units are independent; you can move them smoothly.
