Why Does a High-Speed Carton Erecting Machine Belong on Your Packaging Line?

You're running a food packaging operation—hamburger boxes, french fry trays, takeout containers, or meal boxes. The bottleneck isn't printing or cutting anymore; it's forming. Manually folding and gluing boxes is slow, inconsistent, and labor-intensive. A high-speed carton erecting machine solves that problem by taking flat paperboard blanks and forming them into finished boxes in one continuous, automated pass. The ZX series from Feida Machinery is built for exactly this purpose—reaching speeds of 60-300 boxes per minute, handling materials from 150gsm board to 1.6mm corrugated, and offering single- or double-lane configurations to match your volume. This guide covers what the machine does, the key specifications that determine performance, the available configurations, and what to look for when selecting a carton erecting system for your food packaging line.

From Flat Paper to Finished Box – One Continuous, High-Speed Process

A carton erecting machine takes flat paperboard blanks—pre-cut and scored—and transforms them into finished boxes through a series of automated stations: folding, gluing, pressing, and discharge. The ZX series handles the entire process continuously, from a stack of flat blanks to finished boxes ready for filling. The machine is specialized in making food cartons, boxes, and containers from cardboard, paper, paperboard, and corrugated paper.

The Forming Process – Folding, Gluing, and Pressing

The machine feeds flat blanks from a magazine, folds them along pre-scored lines, applies glue through a water-glue system, and presses the glued flaps to form a finished box. Each step is precisely controlled to ensure consistent box dimensions and strong bonds.

Servo-Driven Precision for Consistent Quality

The ZX series uses servo drive control to ensure precise forming and consistent quality. Servo motors provide accurate positioning of each folding and pressing operation, eliminating the variability of mechanical cam-driven systems.

Single Lane or Double Lane – Choosing the Configuration That Fits Your Volume

The ZX series is available in two primary configurations: single-lane and double-lane. The choice depends on your production volume and floor space.

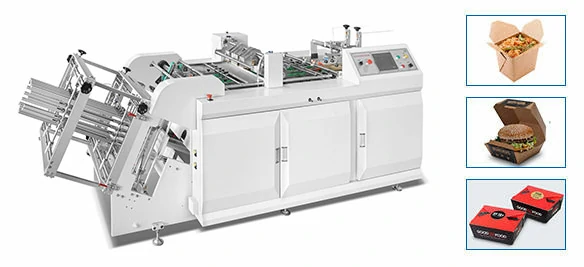

Single-Lane ZX-1200 – For Medium-Volume Production

The ZX-1200 is a single-lane machine that produces 60-180 boxes per minute. It handles materials from 150-600gsm with a maximum thickness of 1.5mm. Box size ranges from 100-430mm in length, 100-630mm in width, and 15-320mm in height.

Double-Lane ZX-2000 – For High-Volume Production

The ZX-2000 is a double-lane machine that produces 100-300 boxes per minute. It handles materials from 200-620gsm and corrugated up to 1.6mm. Box size ranges from 100-450mm in length, 100-600mm in width, and 15-200mm in height. The double-lane configuration features dual production lines in one machine, doubling output without requiring extra floor space.

From 150gsm Board to 1.6mm Corrugated – A Machine That Adapts to Your Materials

The ZX series is designed for material versatility, handling a wide range of substrates used in food packaging.

Paperboard and Cardboard

The machine handles board and paperboard from 150-620gsm, covering most standard food packaging materials—from lightweight burger boxes to heavier takeout containers.

Corrugated Paper

For applications requiring additional strength, the ZX series handles corrugated paper up to 1.6mm thickness. This makes it suitable for larger or heavier-duty food containers.

Fluted Paper

The machine also handles fluted paper, expanding its range of applications to include specialty packaging.

Servo Precision, Water-Glue Bonding, and 24/7 Reliability – The Engineering Behind Consistent Output

The ZX series incorporates several engineering features that ensure consistent output and minimal downtime.

Servo Drive Control

Advanced servo motors ensure precise forming and consistent quality. Each motion is accurately controlled, eliminating the variability of mechanical cam-driven systems and ensuring that every box meets specifications.

Water-Glue System

The machine uses a water-glue system for bonding. Water-based glue provides strong bonds without hazardous fumes, improves hygiene standards, and is easy to maintain. The system is eco-friendly and supports easy cleaning of glue nozzles and forming plows.

24/7 Support and Global Spare Parts

Remote troubleshooting, on-site training, and spare parts availability ensure the machine stays running. Wearing parts are stocked in Europe, the US, and Asia for fast delivery.

From Burger Boxes to French Fry Trays – Where High-Speed Forming Makes the Difference

The ZX series is used across the food packaging industry for a wide range of applications.

• Hamburger boxes: Fast food chains rely on high-speed forming for peak demand

• French fry trays and boxes: Food service operations have reduced labor by switching from manual gluing to automated forming

• Takeout and delivery boxes: Improved hygiene standards and regulatory compliance with water-glue systems

• Hot dog trays, lunch boxes, and meal boxes: Versatile for a variety of food container formats

Key Technical Specifications

Before You Invest in a Carton Erecting Line – 7 Things to Ask

What is the maximum production speed?
The ZX-2000 double-lane machine reaches 300 boxes per minute, depending on box size and material. The ZX-1200 single-lane machine runs at 60-180 boxes per minute.

What materials can the machine handle?
The machine handles board, paperboard, cardboard (150-620gsm), corrugated up to 1.6mm, and fluted paper.

What is the difference between single-lane and double-lane configurations?
Double-lane offers dual production lines in one machine, doubling output without extra floor space. The ZX-2000 reaches 300 boxes/min while the ZX-1200 reaches 180 boxes/min.

What glue system does the machine use?
The machine uses a water-glue system. It provides strong bonds, no hazardous fumes, easy maintenance, and improved hygiene standards.

Do you provide training for the glue system?
Yes, on-site training is available for glue viscosity setting and nozzle cleaning.

Can the machine be customized for specific box shapes?
Yes. Forming plows and glue patterns can be designed for unique box designs.

Let's Match a Carton Erecting System to Your Box Types and Production Targets

Selecting a carton erecting machine comes down to three factors: production speed (match your volume), configuration (single or double lane), and material compatibility (match your substrate range). Contact Feida Machinery for a customized solution → —their team can help you select the right ZX series configuration for your specific food packaging needs.

Feida Machinery is a manufacturer of carton erecting and paper box forming equipment for the food packaging industry. The ZX-1200 single-lane machine produces 60-180 boxes per minute with 150-600gsm board and 1.5mm max thickness. The ZX-2000 double-lane machine produces 100-300 boxes per minute with 200-620gsm board and 1.6mm corrugated. Both machines feature servo drive control, water-glue welding, and handle materials including paperboard, cardboard, corrugated, and fluted paper. Applications include hamburger boxes, french fry trays, takeout containers, lunch boxes, and meal boxes. Feida Machinery provides comprehensive technical support, on-site training, remote troubleshooting, and global spare parts availability. Connect with Feida Machinery to discuss your box types, production volume targets, and material specifications.
